| Brand Name : | HUAMEI |
| Model Number : | Silicone Release Film |
| Price : | 0.24-1.64/㎡ |
| Payment Terms : | L/C,D/P |
| Supply Ability : | 300000m everyday |
| Delivery Time : | 7-14 days |

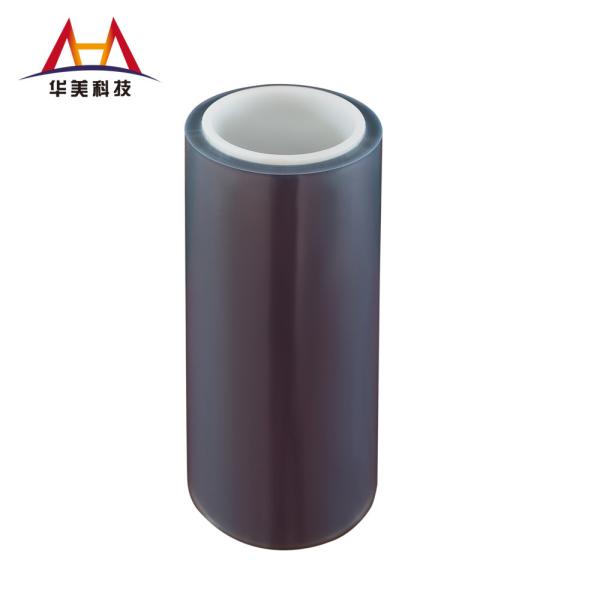

150μm PET Silicone Release Film Screen Protective Film Low-residue Release Film
››› Product Introduction
Using PET substrate, the surface coated with thin layer of silicone release substances. Products are widely used in the protective film, cutting, adhesive, graphite and other fields, play a very good isolation protection.
››› Product Features
1. High Transparency & Smooth Surface: Offers excellent optical clarity and a flat surface, ideal for applications requiring visual precision.
2.Temperature Resistance: Withstands temperatures up to 130°C continuously and 180°C for short durations, suitable for high-temperature processes like electronics manufacturing.
3.High residual adhesion rate (≥85%), very little silicon migration, no performance impact on the bonding material, non-polluting.
4.Temperature Resistance: Withstands temperatures up to 130°C continuously and 180°C for short durations, suitable for high-temperature processes like electronics manufacturing.
5.Anti-Static & Anti-Scratch: Surface treatments prevent static buildup and scratches during handling, critical for protecting sensitive components.
6.Non-Toxic & Food-Safe: Complies with REACH/RoHS standards, suitable for medical devices and food packaging.
7.Recyclable: PET base supports eco-friendly disposal and circular economy initiatives.
››› Product Structure
››› Product Use
1. Printing Industry
Heat Transfer Printing: PET silicone release film is used in heat transfer printing to transfer designs onto various substrates. It ensures that the design is released cleanly from the film onto the target surface.
Digital Printing: It is used as a carrier film for digital printing applications, providing a smooth surface for high-quality prints.
2. Electronics
Protective Films: In the electronics industry, PET silicone release film is used as a protective layer for sensitive components during manufacturing and shipping. It prevents scratches and other damage.
Insulation: It is also used as an insulating material in certain electronic applications.
3. Medical Industry
Wound Care: The film is used in the production of medical tapes and wound care products. It provides a non-stick surface that is gentle on the skin.
Surgical Drapes: It is used in the manufacturing of surgical drapes and other medical protective coverings.
››› Product Packaging
1.Products are generally used by cardboard tray, nude tray packaging;
2.All cartons of products have certificate, packing list, each tray should have a list of products;
3.Our products can also be packaged according to the requirements of the user agreement.
››› Product Performance
| Project | Eigenvalues | ||
| Membrance | Raw materials | PET | |
| Color | Customized according to user needs | ||
| Width(mm) | Customized according to user needs | ||
| Length(mm) | Customized according to user needs | ||
| Thickness(μm) | 125 | ||
| Release Force(g/in) | 1-600 | ||
| Residual adhesion rate(%) | ≥85 | ||
| Separating treatment | Single sided processing | Double sided processing | |
Conventional range from the type of power | 2±1,4±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,50±10,60±10,70±15,90±15,100±20,120±20,150±30, 180±30,200±30,250±30,300±50,400±50,500±100 | ||
FAQ
Q Are you a manufacturer or trading company? A We are a professional manufacturer with over 15 years experience. Q What about the lead time for mass production? A 7-14 days. Q How can I get the free sample? A We provide the free sample.Please tell us which model you want and pay the freight,then we will ship out the samples. Q What about the payment? A L/C,D/P. Q How can we grantee quality? A We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines,tensile testing technology, ROHS detectors,and constant temperature and humidity environmental testers. |
|
|
