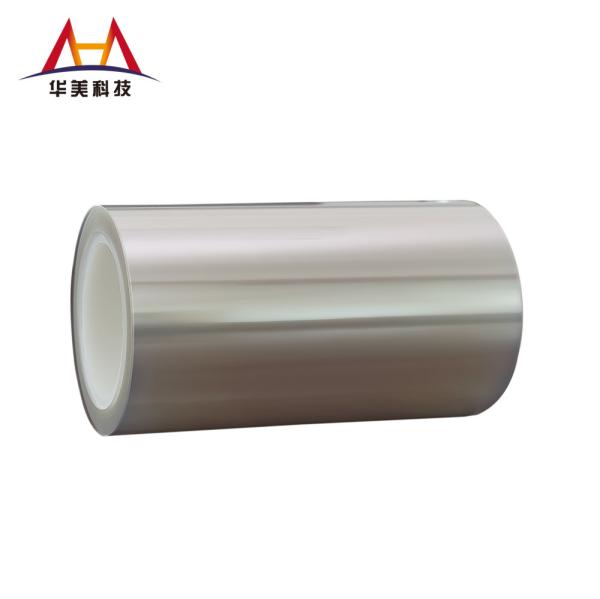

25g/in OCA PET Silicone Release Film Screen Protector Film Lamination
››› Product Introduction
This product uses optical grade PET as the base material and coats its surface with an ultra-thin OCA-formed release substance. It is suitable for optical film and other fields, and is also widely used in die-cutting products, adhesive products, light curing and heat curing products, which play a good role in isolation and protection.
››› Product Features
1.Producing in the 100-level clean environment, with high cleanness.
2.Uniform coating, flat film surface, no rainbow pattern, etc. and strict control of film surface defects.
3.High residual adhesion rate (≥85%), no performance impact on the bonding material, non-polluting.
4.OCA Optical Adhesive Compatibility:Protects adhesive layers during storage and prevents premature curing.
5.Controlled Release Force: Adjustable between 2–50 g/in², compatible with high-viscosity OCA adhesives.
››› Product Structure
››› Product Use
1.Optical Clear Adhesive (OCA) Films: The primary use of OCA PET silicone release film is in the manufacturing of OCA films. These films are used in touchscreens, displays, and other optical applications where clarity and adhesion are crucial. The silicone release film acts as a protective layer that can be easily removed before the OCA film is applied.
2.Flexible Printed Circuits (FPC): OCA films are used in the production of flexible printed circuits, which are found in various electronic devices. The silicone release film ensures that the adhesive layer is protected until it is ready to be applied.
3.Photovoltaic Modules: In the solar industry, OCA films are used in the production of photovoltaic modules. The silicone release film helps in the precise application of the adhesive layer, ensuring optimal performance of the solar panels.
››› Product Packaging
1.Products are generally used by cardboard tray, nude tray packaging;
2.All cartons of products have certificate, packing list, each tray should have a list of products;
3.Our products can also be packaged according to the requirements of the user agreement.
››› Product Performance
| Project | Eigenvalues | ||
| Membrance | Raw materials | PET | |
| Color | Transparent | ||
| Width(mm) | Customized according to user needs | ||
| Length(mm) | Customized according to user needs | ||
| Thickness(μm) | 25/50/75/100/125 | ||
| Release Force(g/in) | 25 | ||
| Residual adhesion rate(%) | ≥85 | ||
| Spareting treatment | Single sided treatment | ||
| Antistatic treatment | Single sided/Double sided treatment | ||
| Surface resistivity(Ω·m) | 10^5-10^9 | ||
Conventional range from the type of power | 4±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,55±10,75±10 | ||
FAQ
Q Are you a manufacturer or trading company? A We are a professional manufacturer with over 15 years experience. Q What about the lead time for mass production? A 7-14 days. Q How can I get the free sample? A We provide the free sample.Please tell us which model you want and pay the freight,then we will ship out the samples. Q What about the payment? A L/C,D/P. Q How can we grantee quality? A We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines,tensile testing technology, ROHS detectors,and constant temperature and humidity environmental testers. |
|
|
